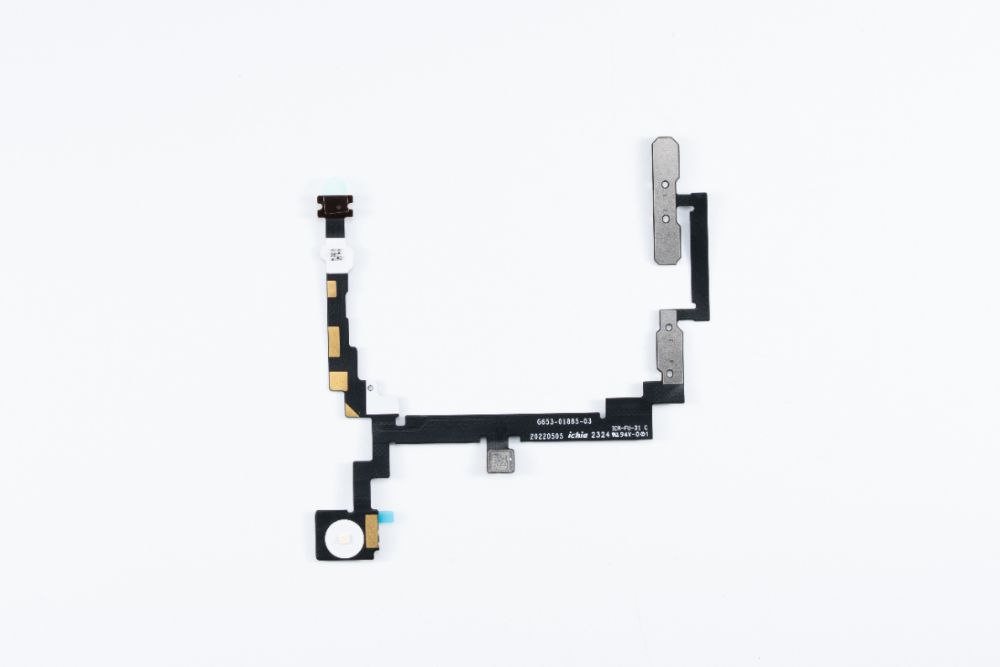

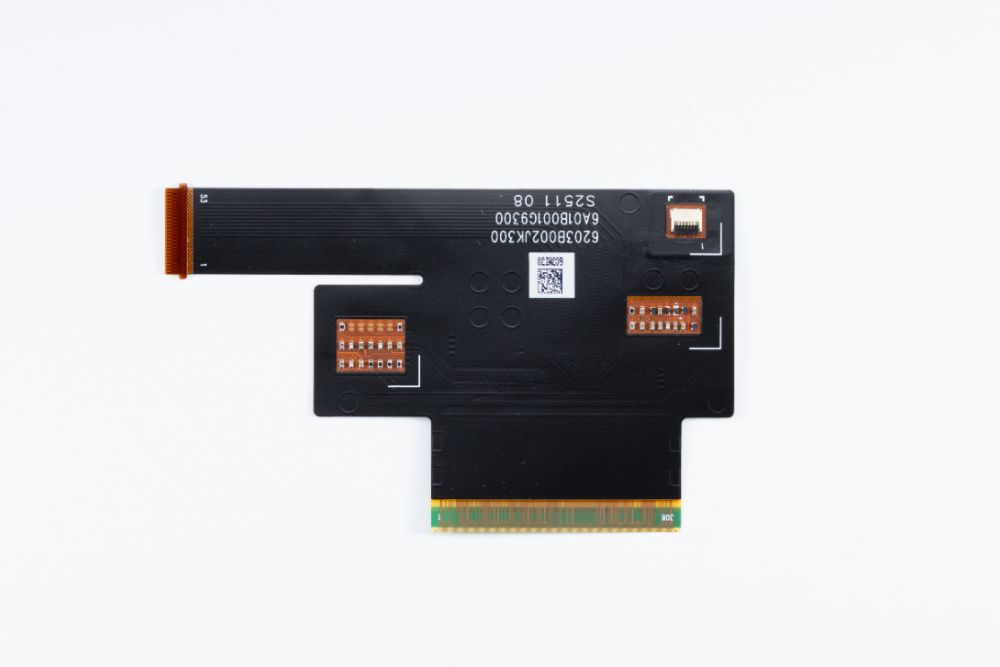

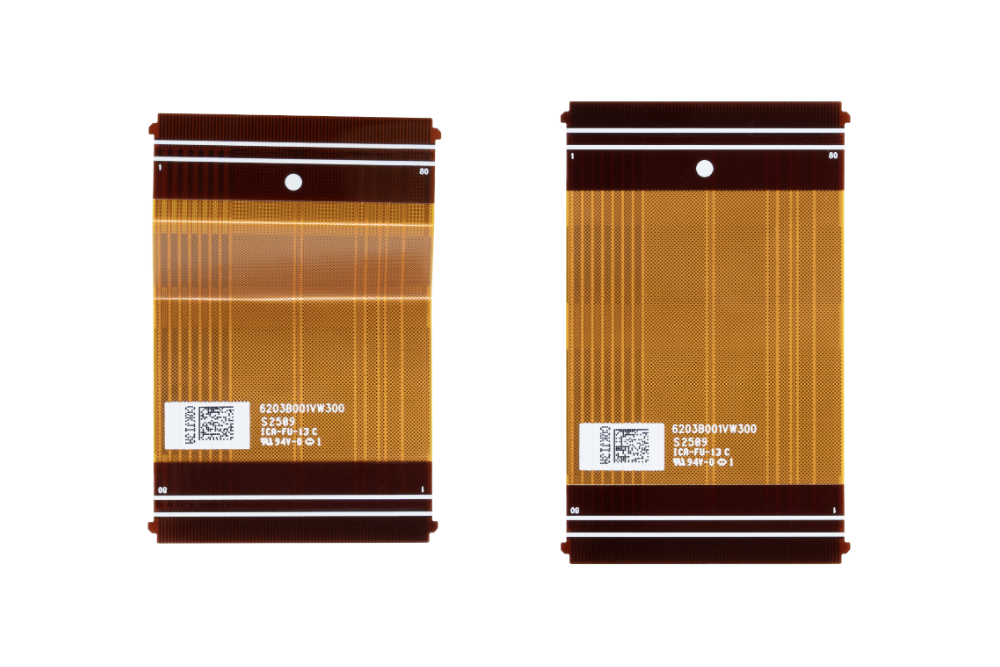

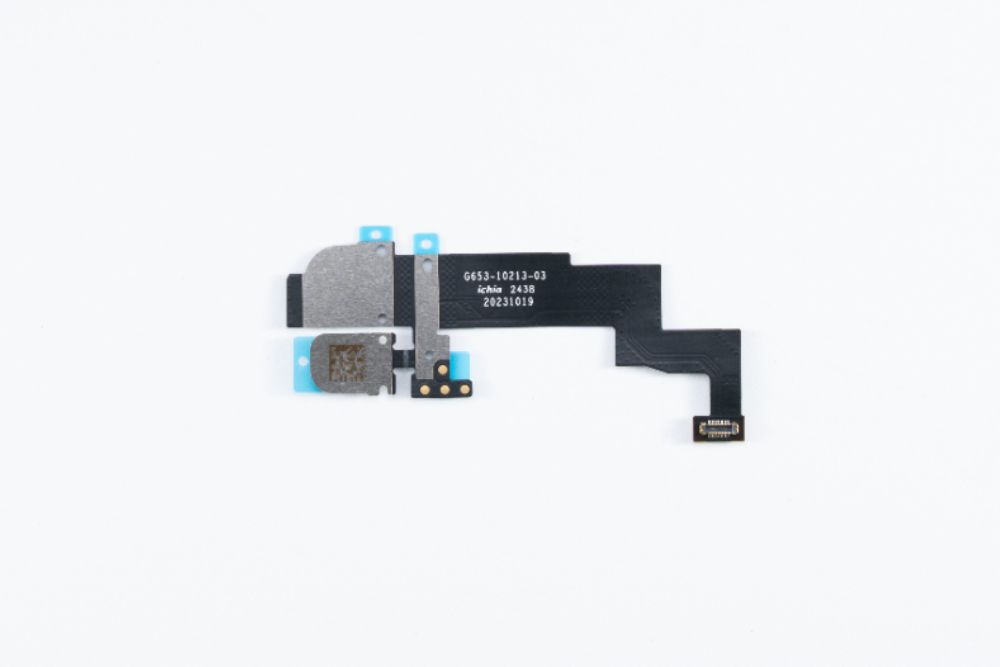

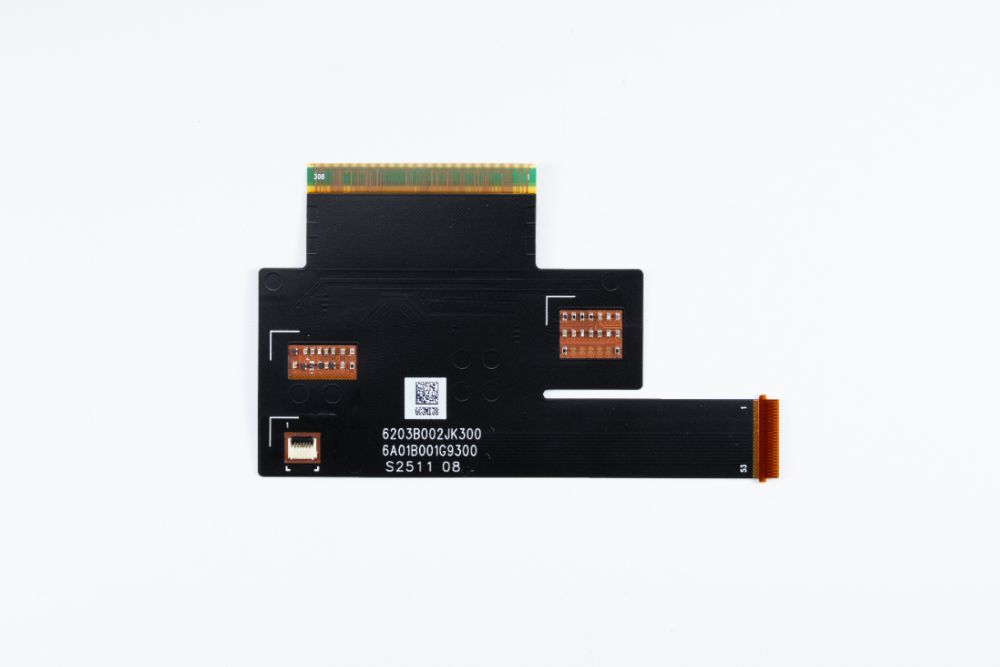

Flexible Printed Circuit
Description：
Key Capabilities & Services Offered
- Single-sided, double-sided, and multi-layer boards (primarily 3–6 layers)
- COG and NB-type single-sided boards with warpage controlled within 2mm
- Laser via: minimum 35μm; blind via: minimum 75μm
- Circuit capability: 40μm line width and 40μm spacing
- CVL and stiffener lamination accuracy: ≤0.1mm
- 0.05mm micro via hole filling

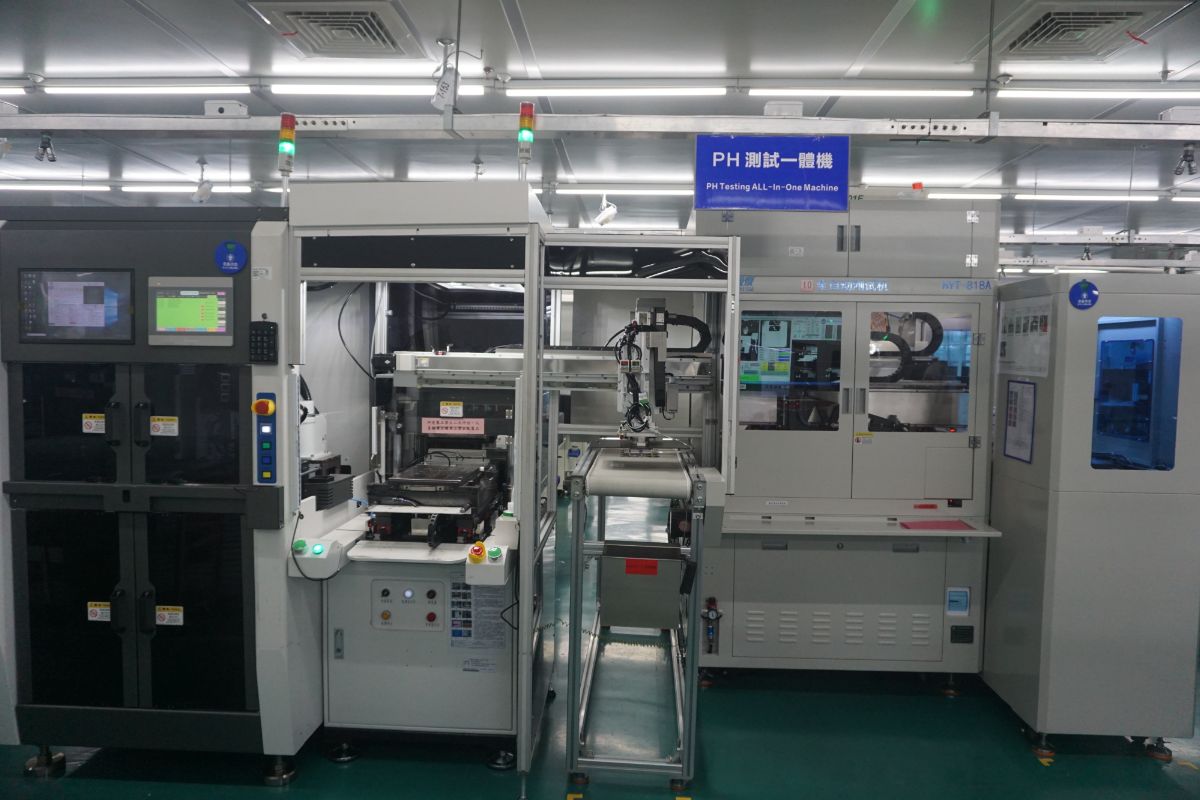

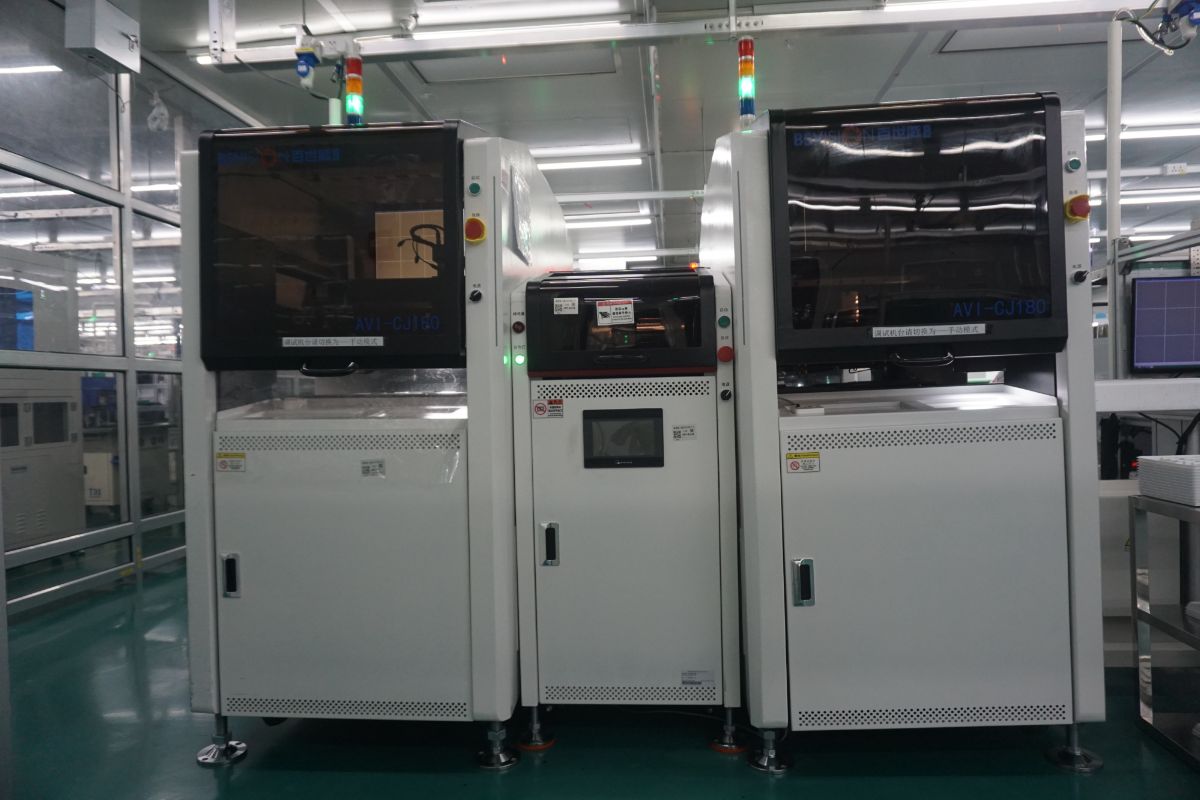

- Comprehensive one-stop service from FPC to FPCA, including manufacturing, assembly, testing, and packaging

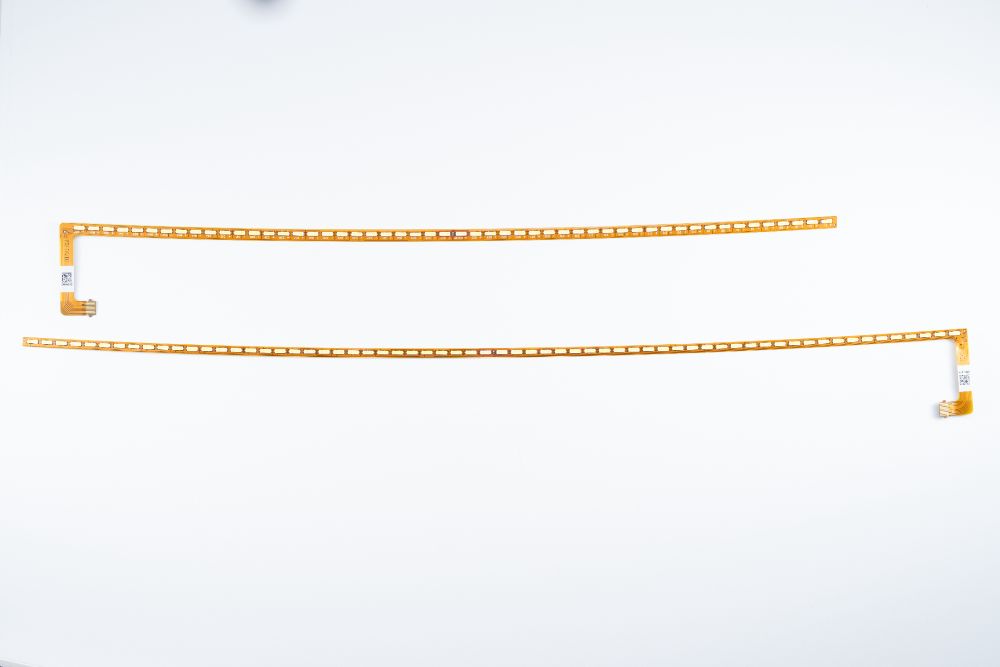

- CCS (Cell Contacting System): single-sided FPC with SMT process up to 2m in length, supporting high current demands of 3A
FPC (Flexible Printed Circuit) is a type of circuit board made from flexible plastic materials, allowing it to bend and twist without breaking. It is widely used in compact and movable electronic devices such as smartphones, wearables, and modules due to its lightweight, thin profile. Although it typically supports fewer layers and lower current capacity than rigid boards, FPC provides excellent flexibility and space efficiency. Through comprehensive design, assembly, and testing, we deliver robust FPC solutions tailored to the evolving needs of automotive, wearable, and consumer electronics applications.
